BY1000M
BY1000 Serial
|
|
|
| BY1000 | BY1000-6 | BY1000M |

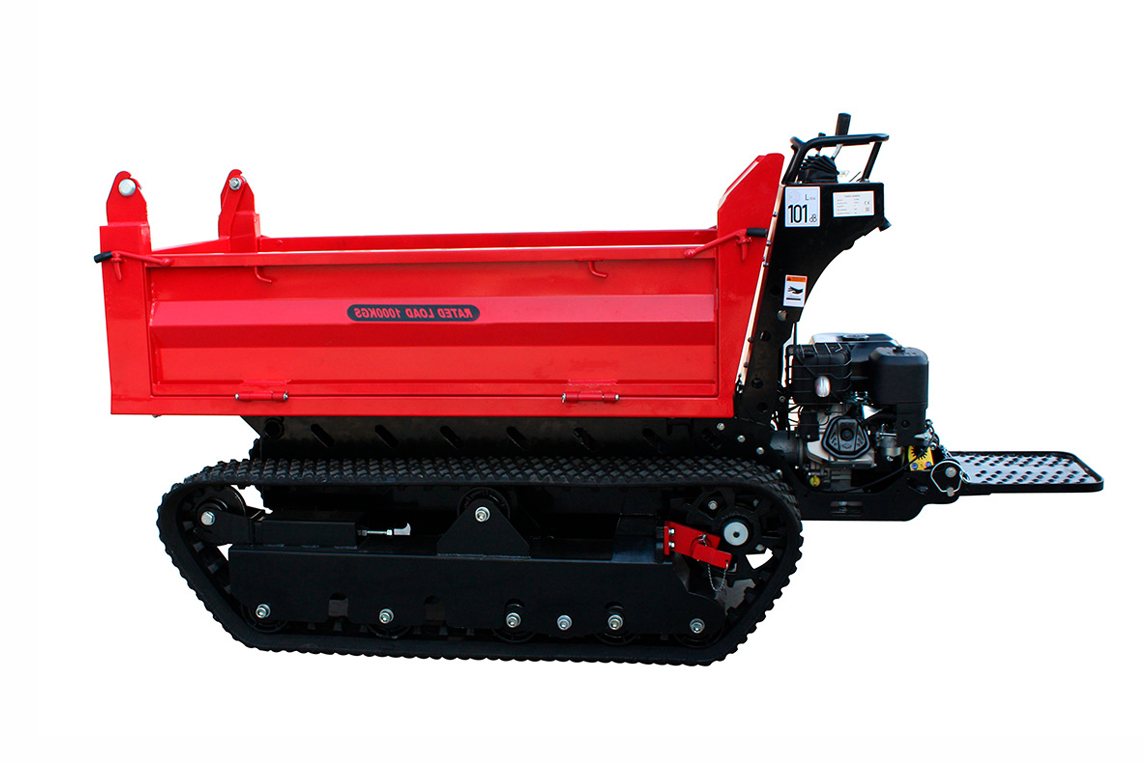

The BY1000 dumper is a tracked mounted, self loading dumping with a load capacity of 1000kg. It has unique design with humanization and its main parts are imported from USA with world wide warranty.
In action! Photos and Videos

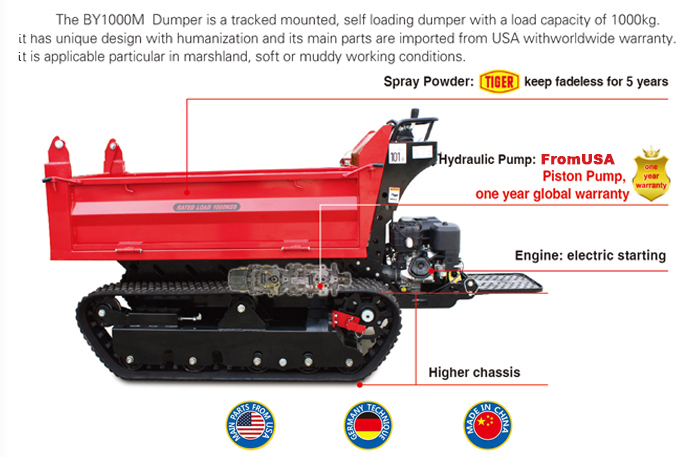

Details
|
|
|
|

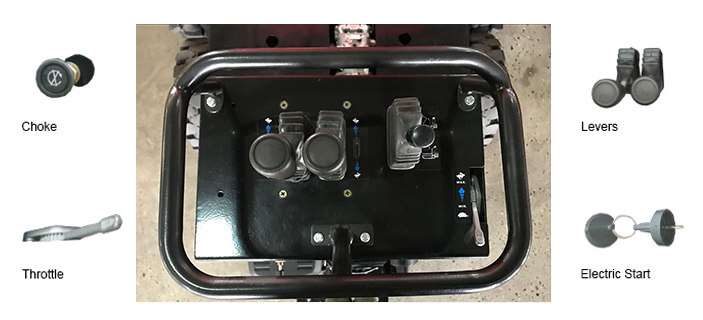

| BRAKE FRAME | ELECTRIC START | HEAVY DUTY RUBBER | ROCKING ROLLERS |
| SWITCH | TRACK | ||
|
|
|
|
| PISTIONS PUMPS | SIGHT FUEL LEVEL | TIMER | FILTER |

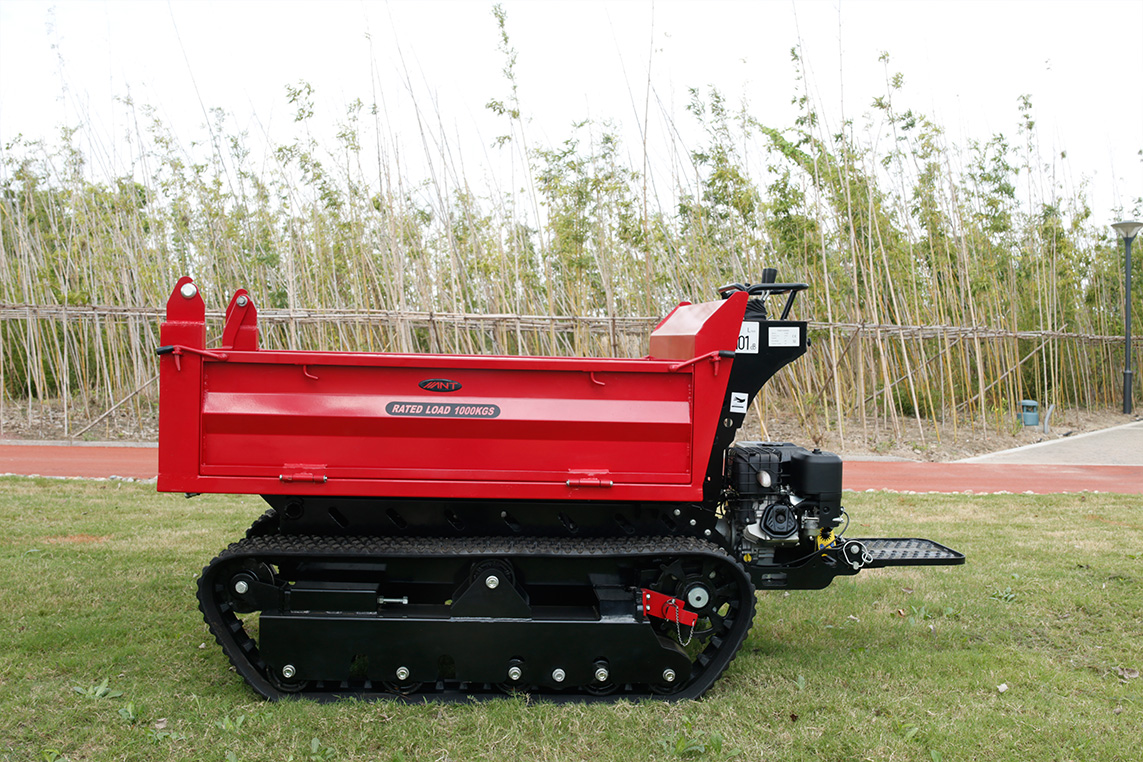

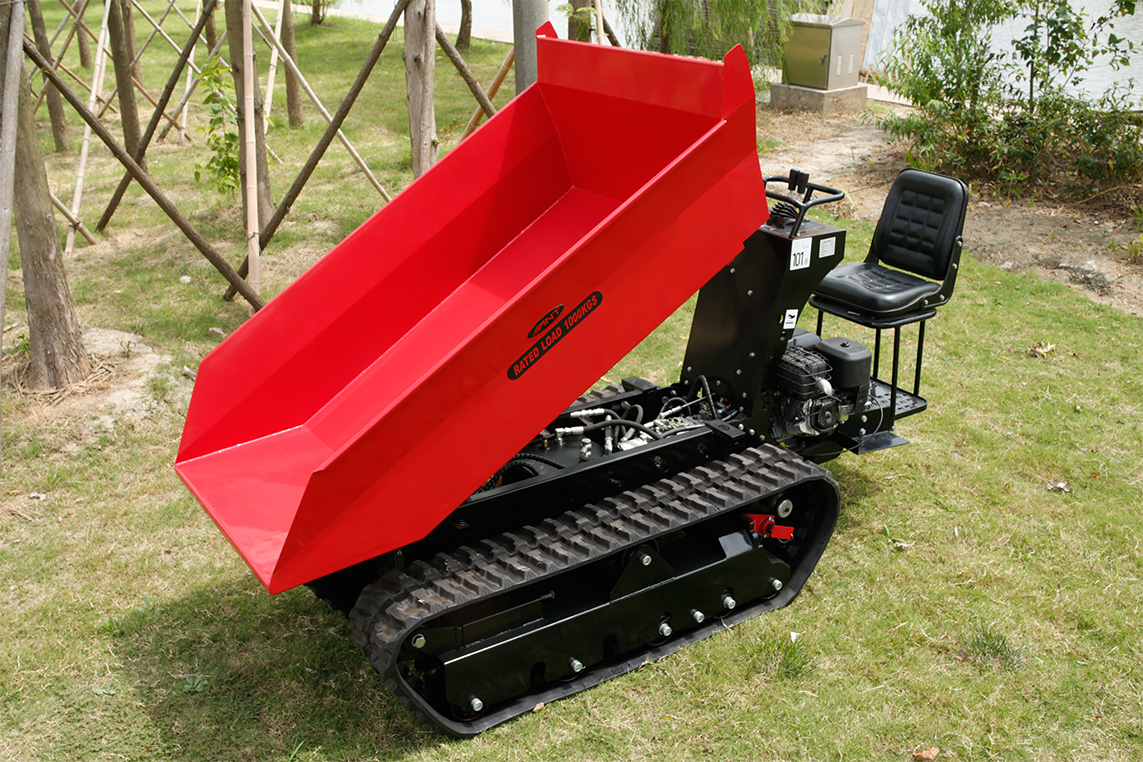

Operation Pictures
Technical Data Sheet
| Description | BY1000 | BY1000M | BY1000-6 |
Weight kg(lb)
|
600(1320) | 800(1764) | 600（1320） |

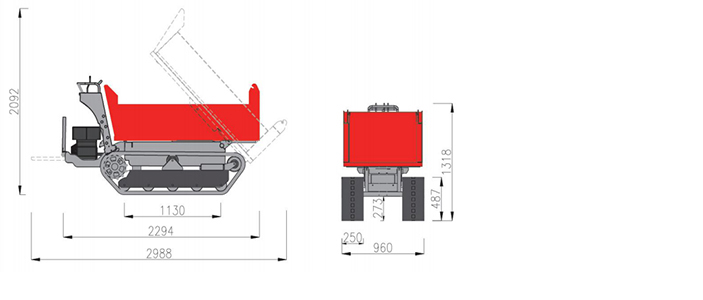

Dimension mm(in)
|
1810*900*1200 | 2250*1120*1600 | 2300*1300*1200 |
Engine
|
Honda GX390 13HP | Honda GX390 13HP | Honda,Biggs&stratton13.5HP Engine |
Transmission
|
Piston pump | Piston pump | Hydraulic piston pump |
|
Loading weight kg(lb) |
1000(2200) | 1000(2200) | 1000（2200） |
Drum material
|
Plastic-Spray | Plastic-Spray | Plastic-Spray |
We reserve the right to improve or withdraw the specification or products without prior notice.
